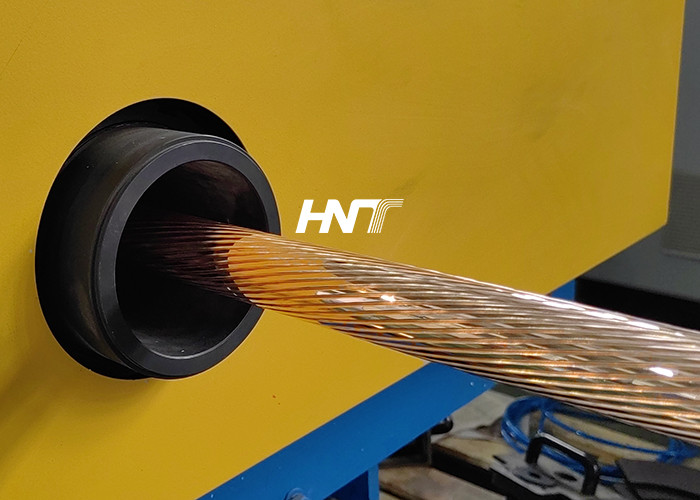

    Copper Aluminum Steel Rigid Frame Stranding Machine 630/1+6+12+18

    Rigid frame stranding machine 630/1+6+12+18

    The machine is used for stranding copper, Aluminum. Stranding unilay and reverse concentric, round, compressed, compacted or sector shaped conductors to be used for the cable manufacturing or for the Over Head Conductors. Rigid stranding lines are ideal machine for making conductors of large size for LV/MV/HV power cables and over head conductors (AAC/AAAC/ACSR). Prepared for Bobbin Dia. 630mm to 710mm with automatic side or floor loading system at 45°as well as special systems adapted to customer need. Confuguration from 19 to 127 wire.


    Electrical Control System:

    The synchronal control system for separate motorized strander is different with other similar strander system by other makers. It's easy to operator by setting-up of all parameters on touch screen. All process parameters can be recollected. Unique pro and date collection system ensure machine running stable and realiable. The precision of lay length is less than 3% when emergency stop and less than 1% when normal stop of line (Profibus communication control).


    Technical Parameter:

    Machine ModelJLK-630JLK-710
    Single Copper Wire Dia.Φ1.7~Φ4.5mmΦ1.7~Φ4.5mm
    Single Alumium Wire Dia.Φ1.8~Φ5.0mmΦ1.8~Φ5.0mm
    Single Alumium Alloy Wire Dia.Φ1.7~Φ4.5mmΦ1.7~Φ4.5mm
    Max. stranded wire dia.Φ30-55mmΦ30-55mm
    Lay length40~350mm(step-less adjust)40~350mm(step-less adjust)
    Max rotate speed500rpm500rpm
    Max line speed100m/min100m/min
    Max rewinding speed150~200m/min150~200m/min
    Pay off in Cage630710
    Centre PayoffPND630/1600PPND630/1600
    Dual Wheel Capstan2000mm, 2500mm2000mm, 2500mm
    Cage rotate motorSiemens AC MotorSiemens AC Motor
    Stranding Cage Structure6B, 12B, 18B, 24B, 30B, 36B6B, 12B, 18B, 24B, 30B, 36B
    Loading MethodSide loading or Bottom loadingSide loading or Bottom loading

    Copper Aluminum Steel Rigid Frame Stranding Machine 630/1+6+12+18Copper Aluminum Steel Rigid Frame Stranding Machine 630/1+6+12+18Copper Aluminum Steel Rigid Frame Stranding Machine 630/1+6+12+18
