80+100 Solar PV Cable Extrusion Line

1. Main Technical Parameter:

• This equipment is mainly used for single-color and double-layer extrusion of Solar cable extrusion line for the materials XHFFR or XLPO. The wire ranges from 1.5mm² to 6mm².

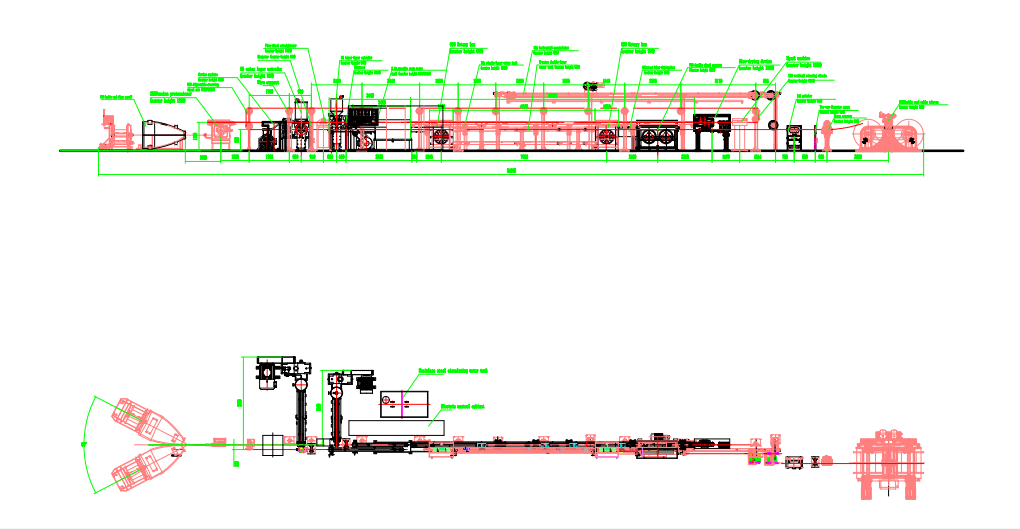

2. Line Main Components:

• 630-800 Motorized Payoff
• Pay-off dancer
• Pay-off tensioner
• 5-wheel straightener
• φ80 Insulation Extruder
• φ100 Sheathing Extruder
• U14 Adjustless Crosshead
• OD Tetser
• cooling water trough
• Horizontal wire accumulator
• Double wheel Capstan
• Power frequency spark machine
• 630-1250 Double Reel Take-up

3. Production Line Electric Control System:

• The whole production line adopts Siemens S7-1500+KTP1200 Siemens touch screen control, which can reflect the production line status in real time; The control electric cabinet adopts the imitation weitu electric cabinet, open the door on one side; The operation screen adopts a separate cantilever screen, which can not be directly mounted on the electrical cabinet
• From the power distribution cabinet to the take-up is equipped with a complete machine cable bridge, the bridge adopts overhead installation, with wire storage column; The cable can be routed from the bridge column;
• Control: automatic and manual control, main engine, traction can be synchronous linkage, single action; The host machine can calibrate the nonlinear curve of extrusion volume, and the traction can be single action and linkage.
• Heating: body heating solid-state relay, crosshead heating contactor, temperature adopts PLC module (strong electrical isolation measures need to be consider
