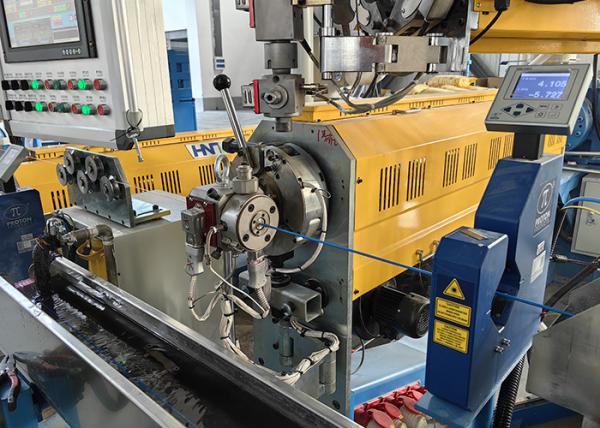

70+45 Building Wire Extrusion Line

1. Main Technical Parameter:

• Application: suitable for the PVC, PE, XLPE for wire and cable insulation and sheath extrusion;
• Operation Direction: Right hand (Face to the machine left payoff, right takeup) or left hand (right payoff, left takeup).
• Input Wire Specifications: ￠1.0-8mm;
• After coating: MAXφ12mm;
• Operation Method: Touch screen operation;
• Design Line Speed:Max 300M/min, (Depends on finished outer diameter)
• 70 Extrusion Capacity:200kg/H(Open crosshead soft PVC);
• 45Extrusion Capacity:80kg/H(Open crosshead soft PVC);
• Production Line center height(crosshead center):1000mm;

2. Line Main Components:

• 630-800 Motorized Payoff
• Pay-off dancer
• Pay-off tensioner
• 5-wheel straightener
• φ70Main Extruder
• φ45 Horizontal CO-Extruder
• U14 Adjustless Crosshead
• OD Tetser
• cooling water trough
• Horizontal wire accumulator
• Double wheel Capstan
• Power frequency spark machine
• 630-1250Take-up

3. Production Line Electric Control System:

• Electric temperature control: temperature control table control;
• Power control: controlled by main switch and each brand switch;
• Motor operation control: frequency converter separate drive control each motor;
• Auxiliary accessories such as caliper and spark machine are completely integrated into the whole system, with higher automation, wire diameter setting, wire diameter control, automatic control Voltmeter: total voltage display;
• Electric heating temperature control (Japan RKC):within range of ±2℃, accuracy control 7 measuring temperature points, to fit different technological requirements
• Electric heating ampere meter: display heating of each zone, easily to check;
• cooling fan control: control by RKC temperature-controlled meter, keep temperature curve to straightness;

Hengtai builds corporate brand and core competitiveness with "non-standard mechanical design, R&D and manufacturing capabilities", and can provide customized cable machinery and equipment according to customer needs. The main products include wire and cable extrusion production lines, stranding production lines, coiling and packaging production lines, take-ups and pay-offs and other related auxiliary equipments. The application range covers power cables, construction cables, solar PV cables, THHN cables, elevator flat cables, data cables, electronic cables, automotive cables and etc.

"Technical innovation" is the creed that Hengtai constantly adheres to. Hengtai never suspends R&D and innovation, and makes improvements and breakthroughs on the basis of traditional cable machinery, such as fully automatic coiling, strapping and packaging machine with robot arms, pallet conveyor line, intelligent warehousing and logistics workshop, etc. Hengtai is a nationally certified 'High Technology Expertise', and has passed ISO-9001 quality management system certification and CE certification.

"Manufacturing satisfactory equipment for customers and providing first-class service" is the basic tenet of Hengtai. With excellent performance, stable quality and thoughtful service, Hengtai has established close cooperative relations with customers from China, Germany，Switzerland，Portugal，Turkey，Romania，Japan，Middle East，Brazil，Malaysia，Thailand，Vietnam， India，indonesia and other countries and regions, and our customers from all over the world and at the same time get highly recognized and praised by customers.

In the future, Hengtai will adhere to the concept of "people-oriented, quality-based, customer-first, excellence-pursuing", keep digging into the wire and cable intelligent manufacturing industry, focus on creating value for customers, help customers achieve intelligent and digital transformation, and become the world's leading wire and cable Intelligent manufacturing solution provider.
