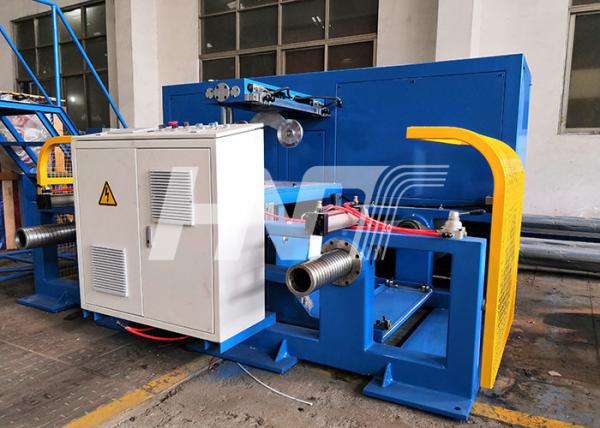

    800 Double Reel Automatic Cable Winder Industrial Cable Winder

    Ask Lasest Price
    Brand Name : HNT
    Certification : ISO9001:2008, CE, High-tech enterprise
    Price : negotiable
    Delivery Time : 30-120 days
    Payment Terms : T/T, L/C
    • Product Details
    • Company Profile

    800 Double Reel Automatic Cable Winder Industrial Cable Winder

    800 Double Reel Take-up

    1. Type: Shaftless;
    2. Power:11KW Variable frequency AC motor;
    3. Suitable Wire Dia.:MAX:¢15mm;
    4. Linear speed: Design linear speed 350M/min;
    5. Suitable bobbin:¢500mm-800mm, loading weight Max. 1500kg.
    6. Traverse: Servo motor + ball screw cable arrangement;
    7. Bobbin loading and unloading:By manual. Electric lifting, pneumatic clamping, power for motor electric lifting;
    8. Control instructions: This machine is operated by an independent electric box, with an emergency stop, linkage interface, and meter output interface added;
    9. An industrial refrigeration air conditioner is installed in the control electric box.

    - Double reel Take-up Specification:

    ModelInner diameter (mm)Outer diameter (mm)Max load (kg)
    PF-1000M630 - 1000300 - 7501500
    PF-1250M800 - 1250450 - 9502500
    PF-1600M1000 - 1600600 - 12004000

    800 Double Reel Automatic Cable Winder Industrial Cable Winder

    800 Double Reel Automatic Cable Winder Industrial Cable Winder
