    Twisting Wire φ630/710 Rigid Stranding Machine For Stranding Copper Aluminum

    φ630/710 Rigid Stranding Machine:

    1. The machine is used for stranding copper, Aluminum. Stranding unilay and reverse concentric, round, compressed, compacted or sector shaped conductors to be used for the cable manufacturing or for the Over Head Conductors.
    2. Equipped with contant tension control system and intelligent brake system
    3. The convert control system to guarantee loading successfully in 1 time.
    4. PLC Electric control system.

    Line Main Parts:

    Payoff1set
    Wire Guider1set
    Stranding cageEach 1set
    single wire pre-twistedEach 1set
    Wire Closing and Press mold baseEach 1set
    Meter Counter1set
    Double wheel capstan 2000/25001set
    Side/bottom Lumped loading system3set
    Take up1set
    Electric control system1set

    Main Technical Date:

    Machine ModelJLK-630JLK-710
    Single Copper Wire Dia.Φ1.7~Φ4.5mmΦ1.7~Φ4.5mm
    Single Alumium Wire Dia.Φ1.8~Φ5.0mmΦ1.8~Φ5.0mm
    Single Alumium Alloy Wire Dia.Φ1.7~Φ4.5mmΦ1.7~Φ4.5mm
    Max. stranded wire dia.Φ30-55mmΦ30-55mm
    Lay length40~350mm(step-less adjust)40~350mm(step-less adjust)
    Max rotate speed500rpm500rpm
    Max line speed100m/min100m/min
    Max rewinding speed150~200m/min150~200m/min
    Pay off in Cage630710
    Centre PayoffPND630/1600PND630/1600
    Dual Wheel Capstan2000mm, 2500mm2000mm, 2500mm
    Cage rotate motorSiemens AC MotorSiemens AC Motor
    Stranding Cage Structure6B, 12B, 18B, 24B, 30B, 36B6B, 12B, 18B, 24B, 30B, 36B
    Loading MethodSide loading or Bottom loadingSide loading or Bottom loading

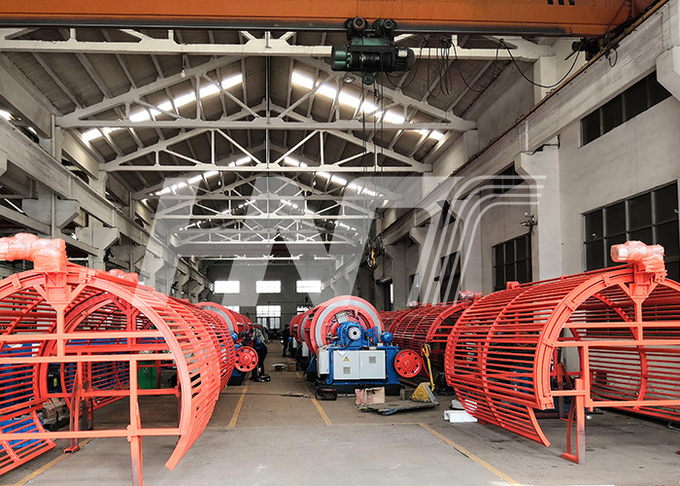

    Twisting Wire φ630/710 Rigid Stranding Machine For Stranding Copper AluminumTwisting Wire φ630/710 Rigid Stranding Machine For Stranding Copper AluminumTwisting Wire φ630/710 Rigid Stranding Machine For Stranding Copper Aluminum
