    PVC Insulated Cable Low Voltage Power Cable Extrusion Line

    Ask Lasest Price
    Brand Name : HNT
    Model Number : φ70mm Extrusion Line
    Certification : CE,ISO9001
    Price : negotiable
    Delivery Time : 30-120 days
    Payment Terms : T/T, L/C
    • Product Details
    • Company Profile

    PVC Insulated Cable Low Voltage Power Cable Extrusion Line

    High Voltage Cable Sheathing Line:

    1. We design the line configurations for different production speeds and spaces according to your requirements
    2. Line can be equipment with tandem extruder for sheathing process
    3. Specific screws and barrels can be chosen to match the material for extrusion, such as PVC, LDPE, MDPE, HDPE, HFFR and etc.

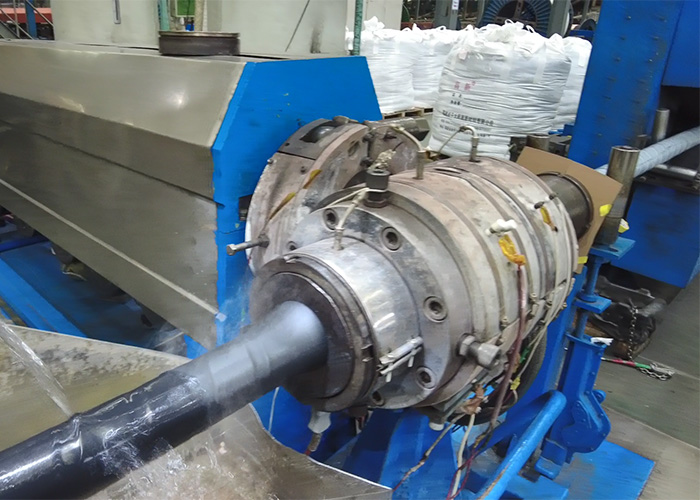

    4. The extrusion crosshead of EX series can be selected from center-adjusted or adjustless, strip color and skin color can be adopt.
    5. Line can connect with portal takeup and payoff,and belt type caterpillar.
    6. Crosshead clampers of EX series are double-tooth rod chain driven, and other fixed parts has the function of auto-centering.
    7. Electric circuit control is from Siemens programmable controller(PLC).
    8. Tem-control is from Japanese RKC series tem-controller &solidity repay(SSR).

    Extrusion Type:

    Technical parameter:

    ModelΦ200 + Φ120
    Screw diameterΦ200 mm + Φ120 mm
    Extrusion amount400 kg/hr
    Viable conductor shapeCircular, Sector, Stranded, Solid
    Applicable materialPVC, PE, LDZH, LDLH, semi-conducting PVC, semi-conducting PE
    Control modePLC
    Max line speed80 m/min
    Wire diameter control precision±0.02 mm

    Extruder series:

    ModelScrew parameterMax Extrude capacity (kg/hr)Finished Outer Diameter (mm)
    Diameter (mm)L/DSpeed (RPM)PVCLDPELSNH
    EX-40G4026:112024140.8-3
    EX-50G5026:112060351-6
    EX-60G6026:112010060222-8
    EX-70G7026:1120160130363-15
    EX-80G8026:1110220180485-20
    EX-90G9026:1100310240658-25
    EX-100G10025:1904009010-30
    EX-120G12025:19055015-40
    EX-150G15025:160900550
    EX-200G20025:16013001100750
