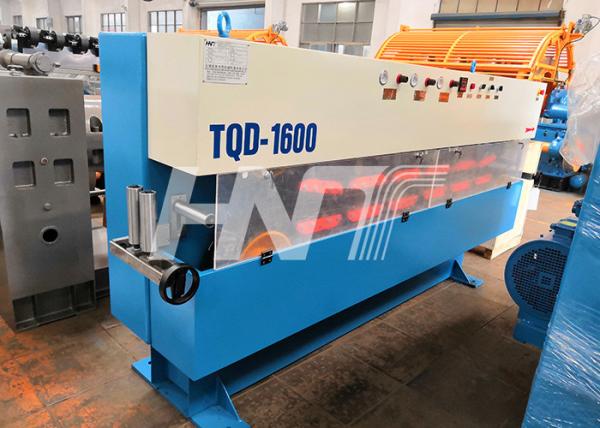

Caterpillar Capstan Belt Type

Description:

The TQD series are designed for pulling and transferring wires and cables in the wire & cable manufacturing production lines. This series of machines are normally attached to lines such as extrusion lines, armoring lines, rewinding lines and etc. The TQD series utilize pneumatic tension control system, which provides enough pulling force on the cable or wire while leaving no dents or other damage to the insulation or sheath.

1. Traction force 1600kg, pneumatic compression and automatic tensioning of the traction belt, transmission is realized by motor and reducer, the equipment has low noise, high output power, and the traction speed is controlled synchronously with the extruder speed, which is stable and reliable. The traction belt is two seamless belts, and there are strong mesh reinforcement layers inside the crawler; Motor power 7.5KW. There are horizontal and vertical guide rollers at the input and output ends, and the gap can be adjusted according to the diameter of the cable. Equipped with display instrument for instantaneous linear speed and accumulated length.
2. The maximum outer diameter of the cable is : 100mm
3. Maximum traction force: 1600kg
4. Clamping length: 1900mm
5. The number of compression cylinder pairs is: 6 pairs
6. Motor power: 11KW servo motor
7. DC drive: Siemens S110 servo governor
8. With compressed air tank 40dm³ 0.2-0.6MPa
