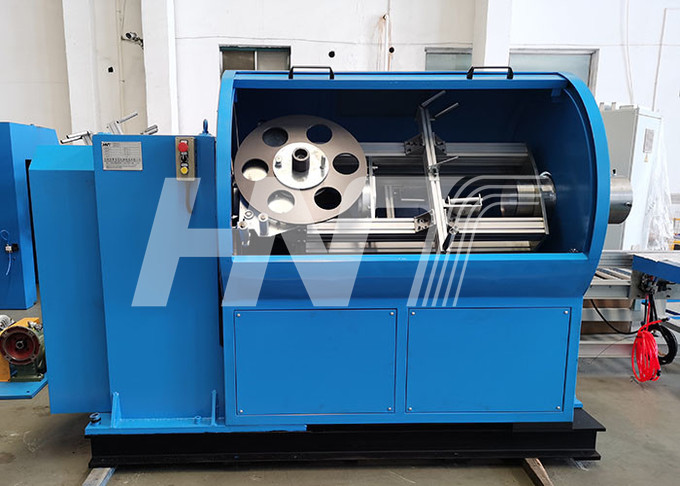

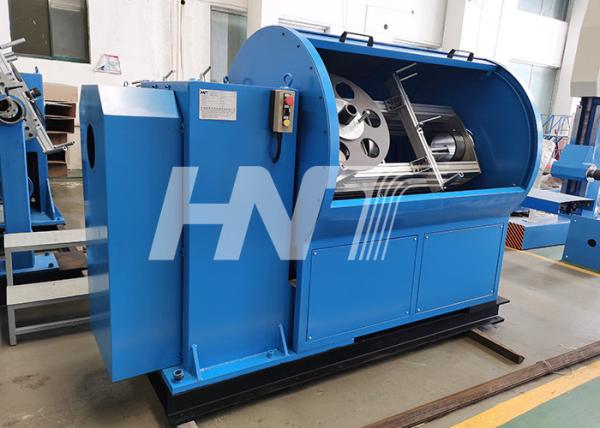

Non Metal Taping Machine

1. The equipment is a non-metal wrapping device, wrapping type is half-cut, the maximum speed is 500r/min, step less speed change, with forward and reverse functions, the tape tension is controlled by the mechanical controller and can be adjusted, with a tension feedback device to ensure The tension is basically constant, and there are pneumatic brakes and belt-break parking protection devices to ensure the safe operation of the equipment. This equipment is driven by a motor.
2. Taping device: Tangential type
3. No. Of Taping head: 2
4. Max. OD of taping wire: Φ200㎜
5. No. Of tape reel 2 reel
6. OD of tape reel Φ600㎜
7. Head Max. Speed 700r/min
8. Tape Overlap rate 0-50%.
9. Tape pitch: 9-160mm
10. Tape material Φ630*Φ80*(30—80) Water blocking tape, copper ribbon, copper tape, buffer tape, etc.(Metal belt weight 25kg/reel Max,Non-metallic belt weight 15kg/reel Max).
11. Adjusted by mechanical friction, adjustable tension.
12. Motor Power:11kw
13. The taping device is composed of a mechanical tension controller, a timing belt wheel and payoff reel. The tension is controlled by mechanical tension. According to the change of speed, the swing arm controls the mechanical tension, so that the tension of the reel changes synchronously with the change of the reel to ensure constant tension is released.
