    High Speed Tubular Stranding Machine For Stranding 7/12/19 Round Or Sector Shape Cable

    Ask Lasest Price
    Brand Name : HNT
    Certification : ISO9001:2008, CE, High-tech enterprise
    Price : negotiable
    Delivery Time : 30-120 days
    Payment Terms : T/T, L/C
    • Product Details
    • Company Profile

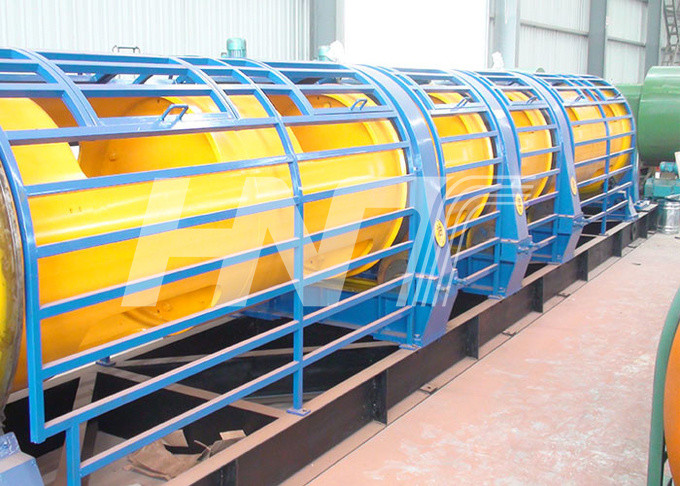

    High Speed Tubular Stranding Machine For Stranding 7/12/19 Round Or Sector Shape Cable

    High Speed Tubular Stranding Machine:

    • Tubular type stranding machine works with 100% back twist movement. This machine is suitable for stranding 7/12/19 round or sector shape cable of copper/aluminum conductors as well as for steel wires stranding.
    • Rotating axis tube is supported by big bearings, it is suitable for high speed rotation.
    • The wire tension control is done through band type brakes.
    • Driven by independently motor.
    • The machine with MMI+PLC control system for pre-setting stranding pitch, wire tension control, automatic tension compensation control and for speed synchronization with the take up unit.

    Technical parameters:

    ModelJLG 500JLG 630
    Single wire diameterCu: Ø 1.2-5.0 mm
    Al: Ø 1.5-5.0 mm
    Cu: Ø 1.2-5.0 mm
    Al: Ø 1.5-5.0 mm
    Max finish wire diameterØ 21 mmØ 21 mm
    Max rotation speed500 rpm500 rpm
    Stranding pitch40-44840-448
    Max line speed150 m/min150 m/min
    Bobbin specificationPND500PND630
    Capstan wheel1250 mm1250 mm
    Take-up bobbinPN1600PN1600
    Height of center850 mm850 mm

    High Speed Tubular Stranding Machine For Stranding 7/12/19 Round Or Sector Shape Cable
