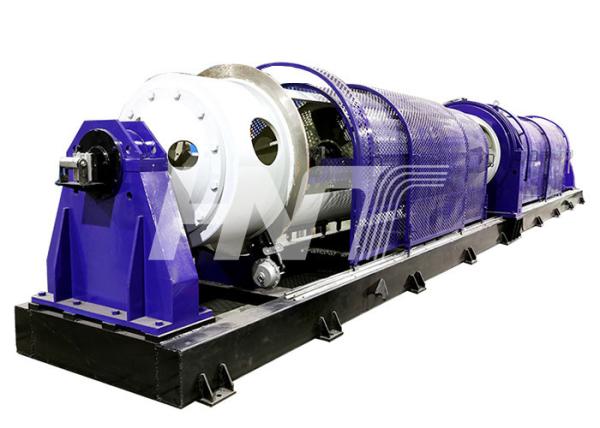

    150m/Min Steel Al Copper Wire Tubular Strander Machine Tubular Strander

    Ask Lasest Price
    Brand Name : HNT
    Certification : ISO9001:2008, CE, High-tech enterprise
    Price : negotiable
    Delivery Time : 30-120 days
    Payment Terms : T/T, L/C
    • Product Details
    • Company Profile

    150m/Min Steel Al Copper Wire Tubular Strander Machine Tubular Strander

    JLG Tubular Stranding Series


    Description


    The JLG tubular stranding series is mainly designed for 7 core stranding. This series can be used to strand aluminum conductors, copper conductors, pressed copper conductors and etc.


    Technical parameters:

    ModelJLG 500JLG 630
    Single wire diameterCu: Ø 1.2-5.0 mm
    Al: Ø 1.5-5.0 mm
    Cu: Ø 1.2-5.0 mm
    Al: Ø 1.5-5.0 mm
    Max finish wire diameterØ 21 mmØ 21 mm
    Max rotation speed500 rpm500 rpm
    Stranding pitch40-44840-448
    Max line speed150 m/min150 m/min
    Bobbin specificationPND500PND630
    Capstan wheel1250 mm1250 mm
    Take-up bobbinPN1600PN1600
    Height of center850 mm850 mm
