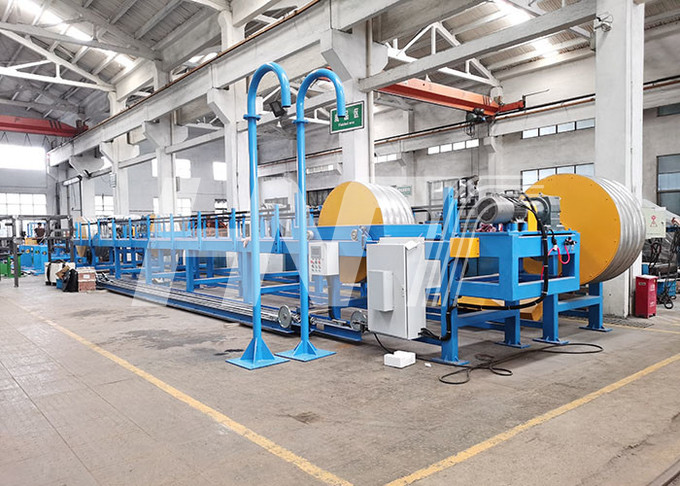

    Horizontal CCV Line Electrical Wire Accumulator With A Pneumatic Clamping Device

    220KV Cable Accumulator For CCV Line​:


    Application:

    MHEDB1400|2000/5 + 6/120 Crosslinked Accne inorder to continuously supply for production when change the reel of payoff to avoid stopping to change the reel, and ensure the prumulator This equipment is a horizontal movable wire accumulator. The wire accumulator is configured on the catenary production lioduct quality. It is one of the necessary equipment on the cross-linking production line.


    Characteristic:

    1. The wire accumulator is equipped with a pneumatic clamping device, used with the wire accumulator, which is convenient for production operation.
    2. The tension of the cable between the two wheels is controlled by electricity
    3. Different cables use corresponding traction speed, which can be realized by motor speed regulation.
    4. The tension at the outlet of the accumulator is constant.

    Technical Parameter:

    ModelMHEDB1400|2000/5 + 6/120
    Accumulator wheel diameter2000 mm
    Maximum conductor diameter1000 mm²
    Accumulator Length120 m
    Number of moving wheels4
    Number of stationary wheels5
    installation length15M
    wire storage materialAluminum alloy
    Maximum design line speed25 m/min
    line speed is continuously adjusted by the variable frequency drive and the AC motor1-25m/min
