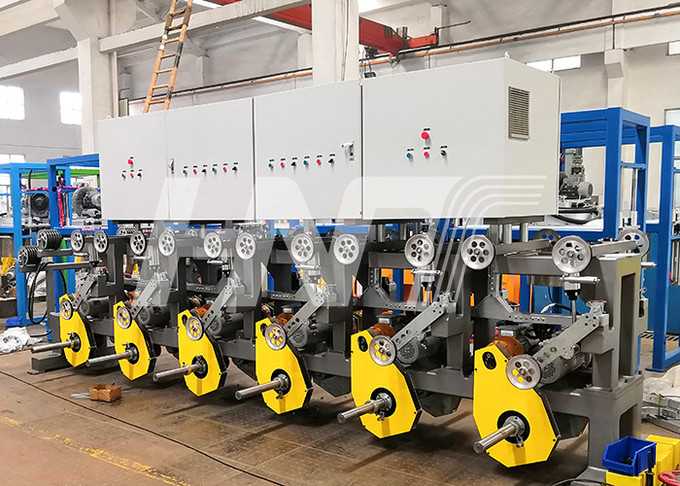

    Elevator Cable Wire Spool Payoff Machine 24 Bobbin Maximum Speed 40m / Min

    Ask Lasest Price
    Brand Name : HNT
    Certification : ISO9001:2008, CE, High-tech enterprise
    Price : negotiable
    Delivery Time : 30-120 days
    Payment Terms : T/T, L/C
    • Product Details
    • Company Profile

    Elevator Cable Wire Spool Payoff Machine 24 Bobbin Maximum Speed 40m / Min

    Multi-Head Payoff For Elevator Cable:

    1. Payoff Structure: Multi-head Payoff;
    2. Payoff Method: Motorized payoff;
    3. Pintle Clamping: Pneumatic cyliner;
    4. Payoff Bobbin quantity: 24 bobbin;
    5. Tension range: 10N ~ 200N, error 3%;
    6. Wire diameter: 1-3mm;
    7. Maximum speed: 40m / min;
    8. Tension control method: dancing wheel system, proportional pressure regulation;
    9. Tension adjustment: central control display adjustment
    10. Maximum load capacity: 300kg.

    Elevator Cable Wire Spool Payoff Machine 24 Bobbin Maximum Speed 40m / Min
