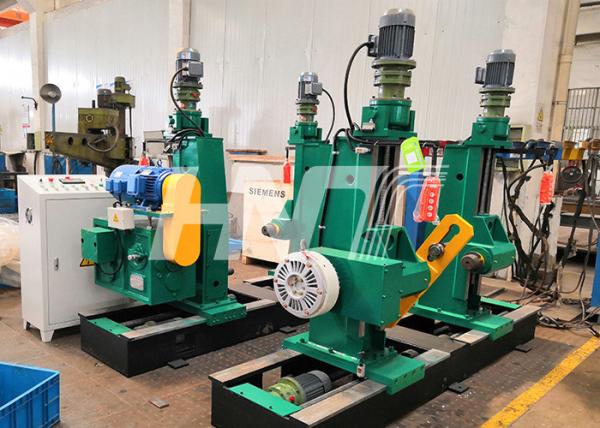

1600 Pintle Type Passive payoff:

• Mainly used for the Payoff of plastic extrusion units, high-frequency welding machines and other cable equipment.
• Application Bobbin:PN800-PN1600
• Width of Bobbin: 500-1000mm
• Bobbin Main shaft lifting range: 350-850mm
• Reel lifting range: 0.6M/Min
• Payoff speed: 4-100M/Min
• Max. Loading: 6T

The loading and unloading method of the Payoff reel is a portal walking structure. The two pintles of the reel are driven up and down by two motors through a cycloidal pinwheel reducer. Each center can be raised and lowered individually or at the same time. It is equipped with mechanical protection and electrical protection devices. The pintle can meet the installation of different specifications of wire reels; the clamping of the wire reels is realized by the motor, and is equipped with mechanical protection and electrical protection devices. It is very convenient to load and unload the spool.
