    Frame Rigid Stranding Machine

    Ask Lasest Price
    Brand Name : HNT
    Model Number : KJ630
    Certification : ISO9001:2008, CE, High-tech enterprise
    Price : negotiable
    Payment Terms : T/T, L/C
    Delivery Time : 30-120 days
    • Product Details
    • Company Profile

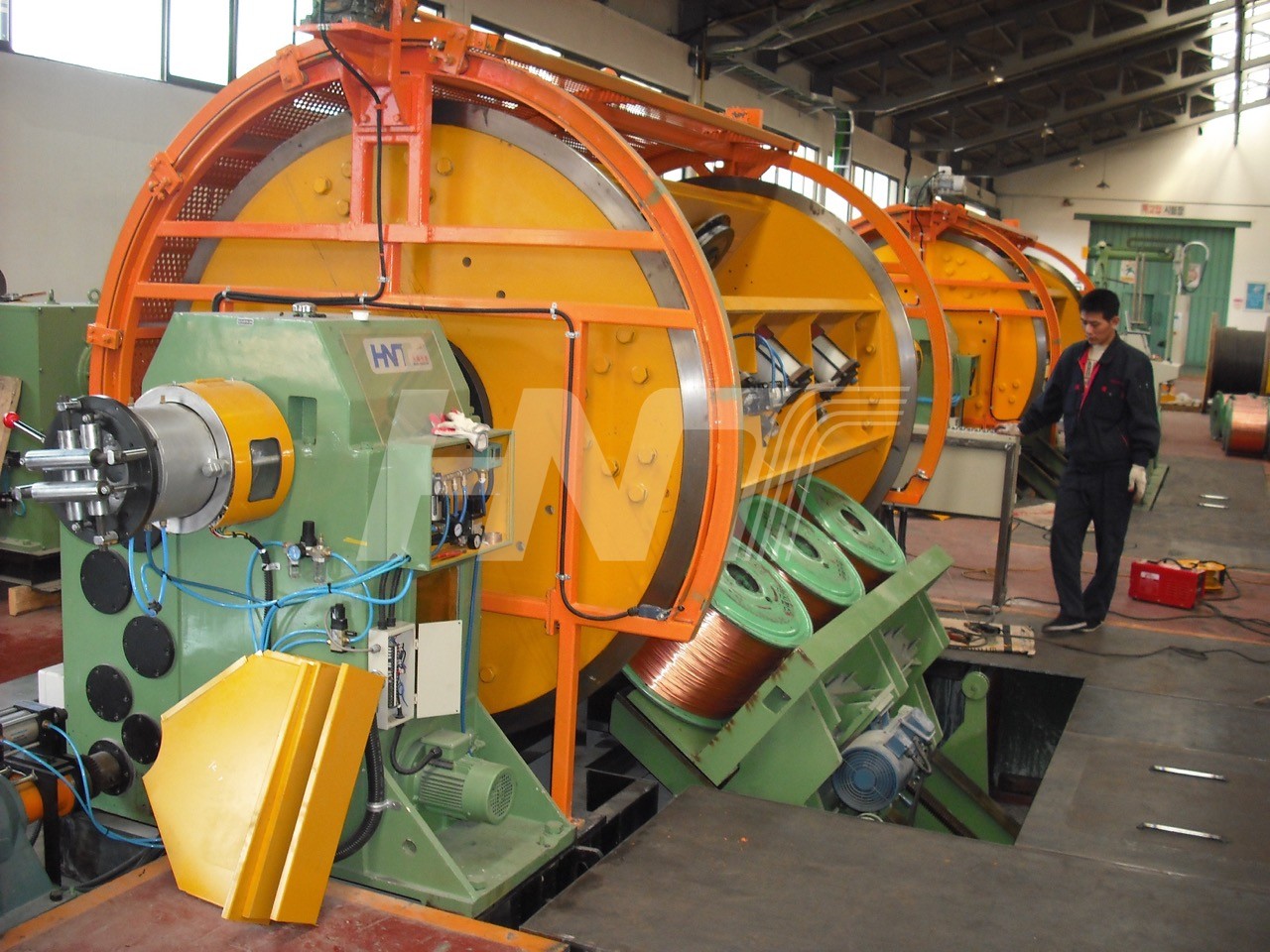

    Frame Rigid Stranding Machine

    Frame Rigid Stranding Machine


    Application


    The machine is specifically designed to manufacture Copper and Aluminum conductors with compacting and prespiralling of sector shape (optional) as well as ACSR at high speed and excellent conductor surface for the H.V. cables produced in continuous vulcanization.


    Equipped with a constant tension control system and intelligent brake system:

    By Tracking(Supersonic) the length of wire wrapped in the bobbin, the length of wire remaining on the bobbin will be detected and transmitted to PLC. The PLC will control the in-taking air by a proportional valve and make the tension of the wire constant following the length of the wire remaining. Two groups control the tension of brake discs for paying off to ensure the pressure on discs is equal. The pneumatic brake system is controlled by an intelligent brake system. When an emergency stops the machine, the speed signal of each cage will be transmitted to PLC by the sensor. PLC will make calculations automatically and provide different brake forces to each cage by proportional valve accordingly. Then the different cages will stop synchronizing.


    Main Technical Data


    No. of Drums in cage6,12,18,24,30,36
    Dia. of single wireCopper 1.5-4.5mm
    Aluminium 1.8-5.0mm
    Aluminium alloy 1.5-4.5mm
    Cage rotating speed

    6-bobbin 200 r/min

    12-bobbin 180 r/min

    18 bobbin 160 r/min

    24 bobbin 140 r/min

    30 bobbin 120 r/min
    Lay length

    6 bobbin 37-500 mm

    12 bobbin 44-590 mm

    18 bobbin 52-694 mm
    24bobbin 61-819 mm
    30 bobbin 72-1100 mm
    Line speed6.9~53m/min
    Sizes of bobbin in cagePND 630
    Centre height1100mm
    Capstan unitφ2000(2500) Dual pulling Capstan

    Frame Rigid Stranding MachineFrame Rigid Stranding Machine

    Frame Rigid Stranding MachineFrame Rigid Stranding Machine
